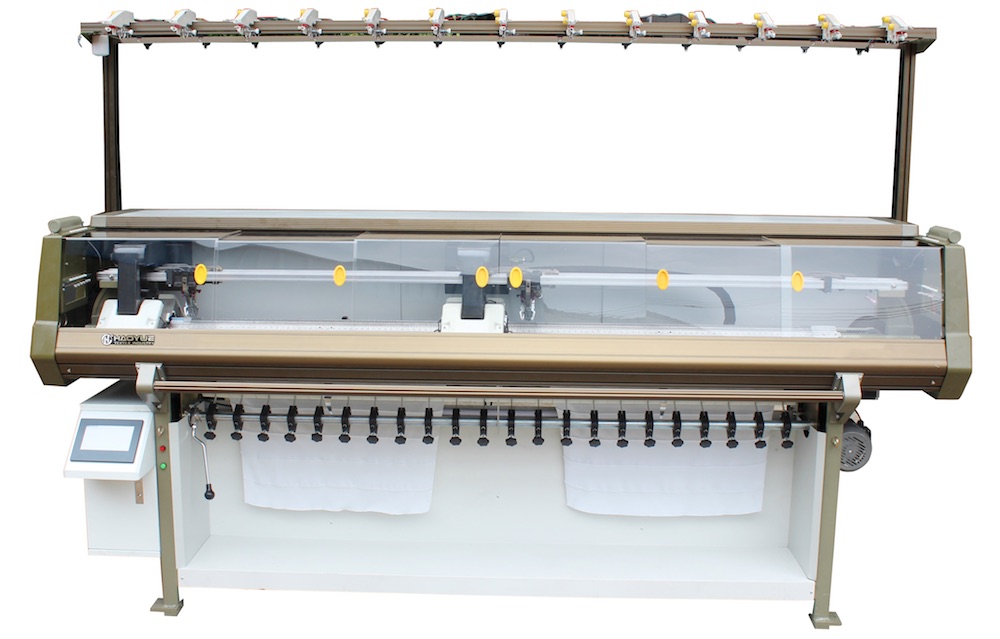

Model

HY-421P / HY-521P / HY-601P / HY-681P / HY-801P / HY-1001P

HY-602P / HY-682P /

HY-802P / HY-1002P

Gauge

12G,14G,16G,18G

12G,14G,16G

Knitting width

42inch  52inch  60inch  68inch  80inch 100inch

60inch , 68inch , 80inch, 100inch

Knitting function

Plain desin, line Jacquard

Plain desin, Line jacquard

Knitting system

Single carriage

Double carriage

Needle-bed

Narrow needle bed, with high and low heel needles at front and back needle bed

Racking

One needle or half-pin can be shaken at any position

Knitting speed

Maximum 1.4M/S

Stitch density

Controlled by stepping motor,0-99, the stitch of the collar can be accurately controlled

Take down roller

Sub-segment combination rollers, Programmed instruction controlled by stepping motor, two speed options

Yarn carrier

6 colors, two side interchangeable feeders

Protection

The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device.

Operation display

LCD industrial display, Can display various parameters, Express in Chinese or English

Power

Single-phase 220V,adopt advanced CMOS technology, having memorizing function at power shock stop

N.W.

450-950KGS

Optional functions

Lycra funtion; Yarn storage device; Yarn feeder device
